urtu

Features:

  • 1 Ethernet port and 2 RS-232 serial ports.
  • Protocols: DNP 3.0, DNP over TCP/IP, DNP over UDP, Modbus, Modbus over IP, PG&E (Data 2179), Telegyr 8979, Harris 5000, or CDC Type I/II.
  • Analog inputs can read DC or AC signals.
  • Capable of controlling local IEDs through 2 serial RS-232 ports.
  • Capable of synchronizing to external time base generators using IRIG-B or NTP (Network Time Protocol).
    Integrated PLC capability.
  • Remotely configurable and programmable.
  • Comes with a free copy of the VisiCal software suite that allows it to be configured, calibrated, scanned, monitored or programmed with drag-and-drop and pushbutton simplicity.

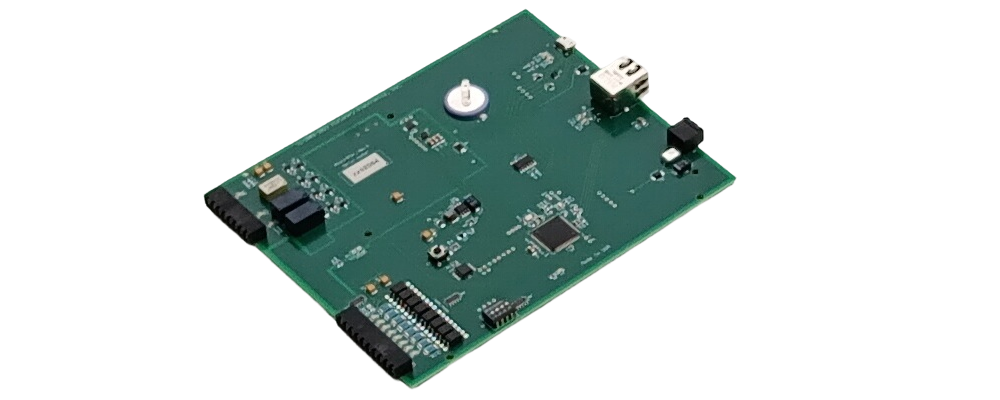

  • Available as a bare PC board, in a plastic enclosure, or in a hard plastic NEMA 4 box.

Specifications:

  • Supply Voltage: 12Vdc to 48Vdc (4 watts)
  • Control Sequence: Direct or SBO
  • Status Inputs: 8
  • Status Input Voltage: 12Vdc to 35Vdc
  • Input Current: 0.1ma (typical)
  • Relay Contacts: 4; Form C, 0.6 Amps at 125Vac or 110Vdc or 2 Amps at 30Vdc.
  • Analog Inputs: 6 single ended user inputs plus zero and full-scale reference voltages
  • Range: -1V to +1V, 0V to 5V, or 4-20ma
  • Accuracy: 0.1%
  • Dimensions (plastic enclosure): 7.0″ x 7.4″ x 1.5″
